预览
代码

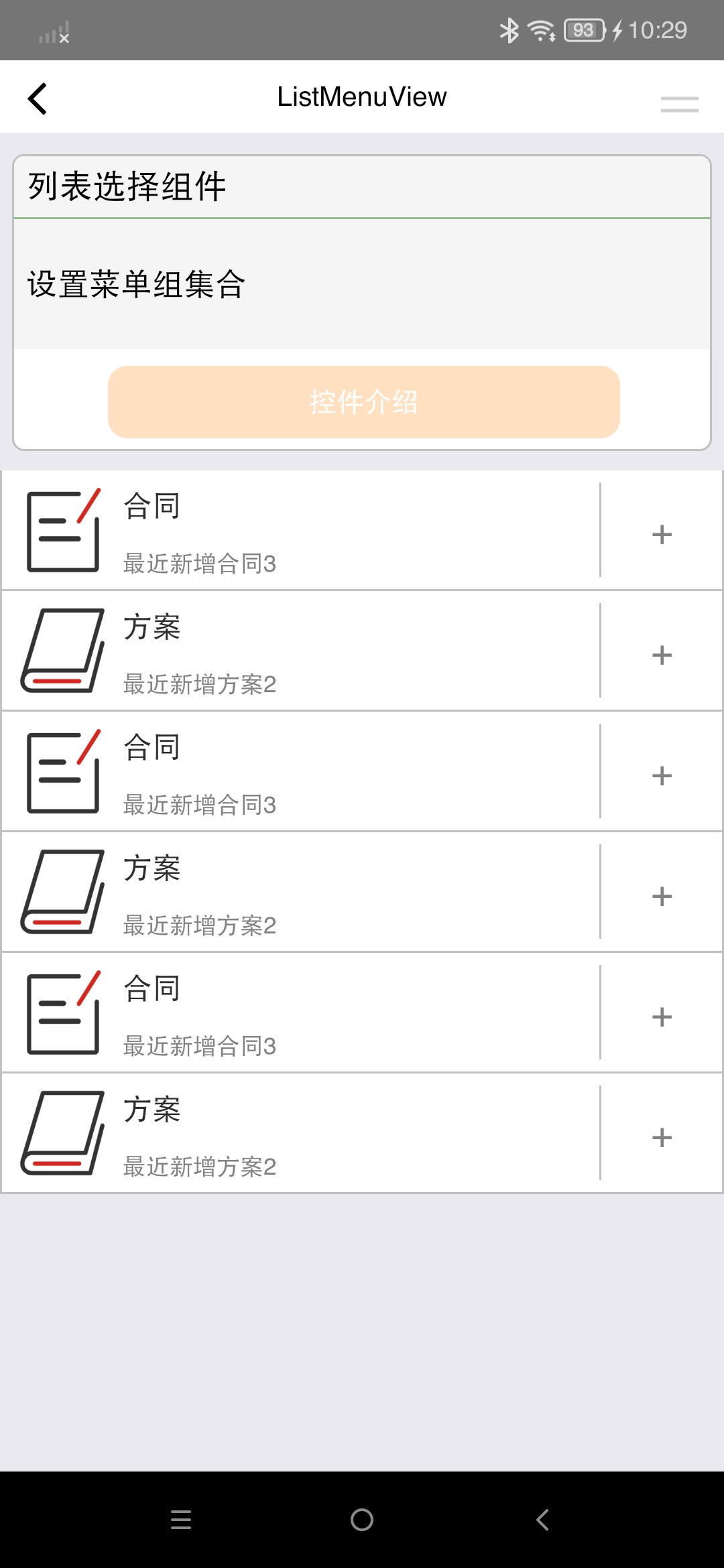

手机端效果

web端效果

demoListMenuView.cs

demoListMenuView.Designer.cs

web:demoListMenuView.cs

web:demoListMenuView.Designer.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace Smobiler.Tutorials.Controls
{
    partial class demoListMenuView : Smobiler.Core.Controls.MobileForm
    {
        public demoListMenuView()
            : base()
        {
            //This call is required by the SmobilerForm.
            InitializeComponent();
        }

        private void button1_Press(object sender, EventArgs e)
        {
            this.popList1.ShowDialog();
        }

        private void title1_ImagePress(object sender, EventArgs e)
        {
            this.Close();
        }

        private void demoListMenuView_Load(object sender, EventArgs e)
        {
            PopListGroup g1 = new PopListGroup();
            g1.AddListItem("Groups");
            g1.AddListItem("MenuGroupHeight");
            g1.AddListItem("MenuItemHeight");
            g1.AddListItem("ShowGroupTitle");
            g1.AddListItem("TextForeColor");
            g1.AddListItem("SubTextForeColor");
            g1.AddListItem("GridLines");
            g1.AddListItem("GridLinesColor");
            g1.AddListItem("GroupBackColor");
            g1.AddListItem("GroupFontSize");
            g1.AddListItem("GroupForeColor");
            g1.AddListItem("ItemActionPress");
            g1.AddListItem("ItemPress");
            popList1.Groups.Add(g1);
        }
        Random rd = new Random();
        private void popList1_Selected(object sender, EventArgs e)
        {
            switch (popList1.Selections[0].Text)
            {
                case "Groups":
                    this.listMenuView1.Groups.Clear();
                    for (int i = 0; i < 5; i++)
                    {
                        AddGroup(i);
                    }
                    labContent.Text = "设置菜单组集合";
                    break;
                case "MenuGroupHeight":
                    this.listMenuView1.MenuGroupHeight += 5;
                    labContent.Text = "设置菜单组高度";
                    break;
                case "MenuItemHeight":
                    this.listMenuView1.MenuItemHeight += 5;
                    labContent.Text = "设置菜单行项高度";
                    break;
                case "ShowGroupTitle":
                    this.listMenuView1.ShowGroupTitle = true;
                    labContent.Text = "是否显示菜单组";
                    break;
                case "TextForeColor":
                    this.listMenuView1.TextForeColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单项文本颜色";
                    break;
                case "SubTextForeColor":
                    this.listMenuView1.SubTextForeColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单项的子文本颜色";
                    break;
                case "GridLines":
                    this.listMenuView1.GridLines = true;
                  labContent.Text = "是否显示网格线";
                    break;
                case "GridLinesColor":
                    this.listMenuView1.GridLinesColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "网格线颜色";
                    break;
                case "GroupBackColor":
                    this.listMenuView1.GroupBackColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单组标题背景色";
                    break;
                case "GroupFontSize":
                    this.listMenuView1.GroupFontSize += 2;
                  labContent.Text = "设置菜单组标题字体大小";
                    break;
                case "GroupForeColor":
                    this.listMenuView1.GroupForeColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单组标题字体颜色";
                    break;
                case "ItemActionPress":
                    labContent.Text = "在菜单项按钮点击时发生";
                    break;
                case "ItemPress":
                    labContent.Text = "在菜单项点击时发生";
                    break;
            }
        }
        private void AddGroup(int i)
        {
            ListMenuViewGroup mvg = new ListMenuViewGroup();
            mvg.Title = "事项" + i.ToString(); ;
            mvg.Items.Add(new ListMenuViewItem("拟定合同.png", "合同", "最近新增合同3", "+"));
            mvg.Items.Add(new ListMenuViewItem("方案.png", "方案", "最近新增方案2", "+"));
            this.listMenuView1.Groups.Add(mvg);
        }

        private void listMenuView1_ItemActionPress(object sender, ListMenuViewItemPressEventArgs e)
        {
            MessageBox.Show("ItemActionPress " + e.Item.Content);
        }

        private void listMenuView1_ItemPress(object sender, ListMenuViewItemPressEventArgs e)
        {
            MessageBox.Show("ItemPress " + e.Item.Content);
        }
    }

}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.Controls
{
    partial class demoListMenuView : Smobiler.Core.Controls.MobileForm
    {
        #region "SmobilerForm generated code "

        //SmobilerForm overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }


        //NOTE: The following procedure is required by the SmobilerForm
        //It can be modified using the SmobilerForm.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel10 = new Smobiler.Core.Controls.Panel();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.labContent = new Smobiler.Core.Controls.Label();
            this.labTitle = new Smobiler.Core.Controls.Label();
            this.button1 = new Smobiler.Core.Controls.Button();
            this.listMenuView1 = new Smobiler.Core.Controls.ListMenuView();
            this.popList1 = new Smobiler.Core.Controls.PopList();
            //
            // title1
            //
            this.title1.ImageType = Smobiler.Core.Controls.ImageEx.ImageStyle.FontIcon;
            this.title1.Name = "title1";
            this.title1.ResourceID = "angle-left";
            this.title1.Size = new System.Drawing.Size(300, 30);
            this.title1.Text = "ListMenuView";
            this.title1.ImagePress += new System.EventHandler(this.title1_ImagePress);
            //
            // panel10
            //
            this.panel10.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1,
            this.listMenuView1});
            this.panel10.Dock = System.Windows.Forms.DockStyle.Fill;
            this.panel10.Location = new System.Drawing.Point(0, 30);
            this.panel10.Name = "panel10";
            this.panel10.Scrollable = true;
            this.panel10.Size = new System.Drawing.Size(300, 970);
            //
            // panel1
            //
            this.panel1.BackColor = System.Drawing.Color.White;
            this.panel1.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel1.BorderColor = System.Drawing.Color.Silver;
            this.panel1.BorderRadius = 5;
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.labContent,
            this.labTitle,
            this.button1});
            this.panel1.Location = new System.Drawing.Point(5, 9);
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(290, 123);
            //
            // labContent
            //
            this.labContent.BackColor = System.Drawing.Color.WhiteSmoke;
            this.labContent.FontSize = 15F;
            this.labContent.Location = new System.Drawing.Point(0, 26);
            this.labContent.Name = "labContent";
            this.labContent.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labContent.Size = new System.Drawing.Size(290, 54);
            this.labContent.Text = "组件，在设计器中不显示设计界面，可使用Show与ShowDialog显示界面";
            //
            // labTitle
            //
            this.labTitle.BackColor = System.Drawing.Color.WhiteSmoke;
            this.labTitle.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.labTitle.BorderColor = System.Drawing.Color.DarkSeaGreen;
            this.labTitle.FontSize = 16F;
            this.labTitle.Name = "labTitle";
            this.labTitle.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labTitle.Size = new System.Drawing.Size(290, 26);
            this.labTitle.Text = "列表选择组件";
            //
            // button1
            //
            this.button1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(255)))), ((int)(((byte)(224)))), ((int)(((byte)(192)))));
            this.button1.Location = new System.Drawing.Point(39, 87);
            this.button1.Name = "button1";
            this.button1.Size = new System.Drawing.Size(212, 30);
            this.button1.Text = "控件介绍";
            this.button1.Press += new System.EventHandler(this.button1_Press);
            //
            // listMenuView1
            //
            this.listMenuView1.BackColor = System.Drawing.Color.White;
            this.listMenuView1.Location = new System.Drawing.Point(0, 140);
            this.listMenuView1.Name = "listMenuView1";
            this.listMenuView1.Size = new System.Drawing.Size(300, 300);
            this.listMenuView1.ItemPress += new Smobiler.Core.Controls.ListMenuViewItemPressEventHandler(this.listMenuView1_ItemPress);
            this.listMenuView1.ItemActionPress += new Smobiler.Core.Controls.ListMenuViewItemPressEventHandler(this.listMenuView1_ItemActionPress);
            //
            // popList1
            //
            this.popList1.Name = "popList1";
            this.popList1.Selected += new System.EventHandler(this.popList1_Selected);
            //
            // demoListMenuView
            //
            this.Components.AddRange(new Smobiler.Core.Controls.MobileComponent[] {
            this.popList1});
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel10});
            this.Load += new System.EventHandler(this.demoListMenuView_Load);
            this.Name = "demoListMenuView";

        }
        #endregion

        private Core.Controls.Title title1;
        private Core.Controls.Panel panel10;
        private Core.Controls.Panel panel1;
        private Core.Controls.Label labContent;
        private Core.Controls.Label labTitle;
        private Core.Controls.Button button1;
        private Core.Controls.PopList popList1;
        private Core.Controls.ListMenuView listMenuView1;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace SmobilerTutorialsWeb.Components
{
    partial class demoListMenuView : Smobiler.Core.Controls.MobileForm
    {
        public demoListMenuView() : base()
        {
            //This call is required by the SmobilerForm.
            InitializeComponent();
        }

        private void title1_ImagePress(object sender, EventArgs e)
        {
            this.Close();
        }

        private void demoListMenuView_Load(object sender, EventArgs e)
        {
            spinner1.Items = new string[] {     "Groups",
           "MenuGroupHeight",
           "MenuItemHeight",
           "ShowGroupTitle",
           "TextForeColor",
           "SubTextForeColor",
           "GridLines",
           "GridLinesColor",
           "GroupBackColor",
           "GroupFontSize",
           "GroupForeColor",
           "ItemActionPress",
           "ItemPress"};

        }

        private void listMenuView1_ItemPress(object sender, ListMenuViewItemPressEventArgs e)
        {
            MessageBox.Show("ItemPress " + e.Item.Content);
        }

        private void listMenuView1_ItemActionPress(object sender, ListMenuViewItemPressEventArgs e)
        {
            MessageBox.Show("ItemActionPress " + e.Item.Content);
        }
        Random rd = new Random();
        private void spinner1_ItemSelected(object sender, SpinnerItemSelectedEventArgs e)
        {
            switch (spinner1.Text)
            {
                case "Groups":
                    this.listMenuView1.Groups.Clear();
                    for (int i = 0; i < 5; i++)
                    {
                        AddGroup();
                    }
                    labContent.Text = "设置菜单组集合";
                    break;
                case "MenuGroupHeight":
                    this.listMenuView1.MenuGroupHeight += 5;
                    labContent.Text = "设置菜单组高度";
                    break;
                case "MenuItemHeight":
                    this.listMenuView1.MenuItemHeight += 5;
                    labContent.Text = "设置菜单行项高度";
                    break;
                case "ShowGroupTitle":
                    this.listMenuView1.ShowGroupTitle = true;
                    labContent.Text = "是否显示菜单组";
                    break;
                case "TextForeColor":
                    this.listMenuView1.TextForeColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单项文本颜色";
                    break;
                case "SubTextForeColor":
                    this.listMenuView1.SubTextForeColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单项的子文本颜色";
                    break;
                case "GridLines":
                    this.listMenuView1.GridLines = true;
                    labContent.Text = "是否显示网格线";
                    break;
                case "GridLinesColor":
                    this.listMenuView1.GridLinesColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "网格线颜色";
                    break;
                case "GroupBackColor":
                    this.listMenuView1.GroupBackColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单组标题背景色";
                    break;
                case "GroupFontSize":
                    this.listMenuView1.GroupFontSize += 2;
                    labContent.Text = "设置菜单组标题字体大小";
                    break;
                case "GroupForeColor":
                    this.listMenuView1.GroupForeColor = System.Drawing.Color.FromArgb(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255));
                    labContent.Text = "设置菜单组标题字体颜色";
                    break;
                case "ItemActionPress":
                    labContent.Text = "在菜单项按钮点击时发生";
                    break;
                case "ItemPress":
                    labContent.Text = "在菜单项点击时发生";
                    break;
            }
        }
        private void AddGroup()
        {
            ListMenuViewGroup mvg = new ListMenuViewGroup();
            mvg.Title = "事项" + i.ToString(); ;
            mvg.Items.Add(new ListMenuViewItem("拟定合同.png", "合同", "最近新增合同3", "+"));
            mvg.Items.Add(new ListMenuViewItem("方案.png", "方案", "最近新增方案2", "+"));
            this.listMenuView1.Groups.Add(mvg);
        }
    }
}

using System;
using Smobiler.Core;
namespace SmobilerTutorialsWeb.Components
{
    partial class demoListMenuView : Smobiler.Core.Controls.MobileForm
    {
        #region "SmobilerForm generated code "

        //SmobilerForm overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }


        //NOTE: The following procedure is required by the SmobilerForm
        //It can be modified using the SmobilerForm.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel10 = new Smobiler.Core.Controls.Panel();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.labContent = new Smobiler.Core.Controls.Label();
            this.listMenuView1 = new Smobiler.Core.Controls.ListMenuView();
            this.spinner1 = new Smobiler.Core.Controls.Spinner();
            this.labTitle = new Smobiler.Core.Controls.Label();
            //
            // title1
            //
            this.title1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(246)))), ((int)(((byte)(246)))), ((int)(((byte)(246)))));
            this.title1.ImageType = Smobiler.Core.Controls.ImageEx.ImageStyle.FontIcon;
            this.title1.Name = "title1";
            this.title1.ResourceID = "angle-left";
            this.title1.Size = new System.Drawing.Size(0, 30);
            this.title1.Text = "ListMenuView";
            this.title1.ImagePress += new System.EventHandler(this.title1_ImagePress);
            //
            // panel10
            //
            this.panel10.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1,
            this.labTitle});
            this.panel10.Dock = System.Windows.Forms.DockStyle.Fill;
            this.panel10.Flex = 1;
            this.panel10.Name = "panel10";
            this.panel10.Scrollable = true;
            this.panel10.Size = new System.Drawing.Size(0, 0);
            //
            // panel1
            //
            this.panel1.BackColor = System.Drawing.Color.White;
            this.panel1.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel1.BorderColor = System.Drawing.Color.Silver;
            this.panel1.BorderRadius = 5;
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.labContent,
            this.listMenuView1,
            this.spinner1});
            this.panel1.Location = new System.Drawing.Point(300, 57);
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(600, 499);
            //
            // labContent
            //
            this.labContent.BackColor = System.Drawing.Color.White;
            this.labContent.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.labContent.Location = new System.Drawing.Point(0, 85);
            this.labContent.Name = "labContent";
            this.labContent.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labContent.Size = new System.Drawing.Size(600, 43);
            this.labContent.Text = "组件，在设计器中不显示设计界面，可使用Show与ShowDialog显示界面";
            //
            // listMenuView1
            //
            this.listMenuView1.Location = new System.Drawing.Point(155, 150);
            this.listMenuView1.Name = "listMenuView1";
            this.listMenuView1.Size = new System.Drawing.Size(300, 300);
            this.listMenuView1.ItemPress += new Smobiler.Core.Controls.ListMenuViewItemPressEventHandler(this.listMenuView1_ItemPress);
            this.listMenuView1.ItemActionPress += new Smobiler.Core.Controls.ListMenuViewItemPressEventHandler(this.listMenuView1_ItemActionPress);
            //
            // spinner1
            //
            this.spinner1.FontSize = 14F;
            this.spinner1.Location = new System.Drawing.Point(155, 23);
            this.spinner1.Name = "spinner1";
            this.spinner1.Size = new System.Drawing.Size(300, 40);
            this.spinner1.ItemSelected += new System.EventHandler(this.spinner1_ItemSelected);
            //
            // labTitle
            //
            this.labTitle.BackColor = System.Drawing.Color.White;
            this.labTitle.Bold = true;
            this.labTitle.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.labTitle.BorderColor = System.Drawing.Color.White;
            this.labTitle.FontSize = 16F;
            this.labTitle.Location = new System.Drawing.Point(300, 30);
            this.labTitle.Name = "labTitle";
            this.labTitle.Size = new System.Drawing.Size(600, 26);
            this.labTitle.Text = "列表选择组件";
            //
            // demoListMenuView
            //
            this.BackColor = System.Drawing.Color.White;
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel10});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(1200, 800);
            this.Load += new System.EventHandler(this.demoListMenuView_Load);
            this.Name = "demoListMenuView";

        }
        #endregion

        private Smobiler.Core.Controls.Title title1;
        private Smobiler.Core.Controls.Panel panel10;
        private Smobiler.Core.Controls.Panel panel1;
        private Smobiler.Core.Controls.Label labContent;
        private Smobiler.Core.Controls.ListMenuView listMenuView1;
        private Smobiler.Core.Controls.Spinner spinner1;
        private Smobiler.Core.Controls.Label labTitle;
    }
}
