控件介绍-开发文档-Smobiler上海石磨

预览
代码

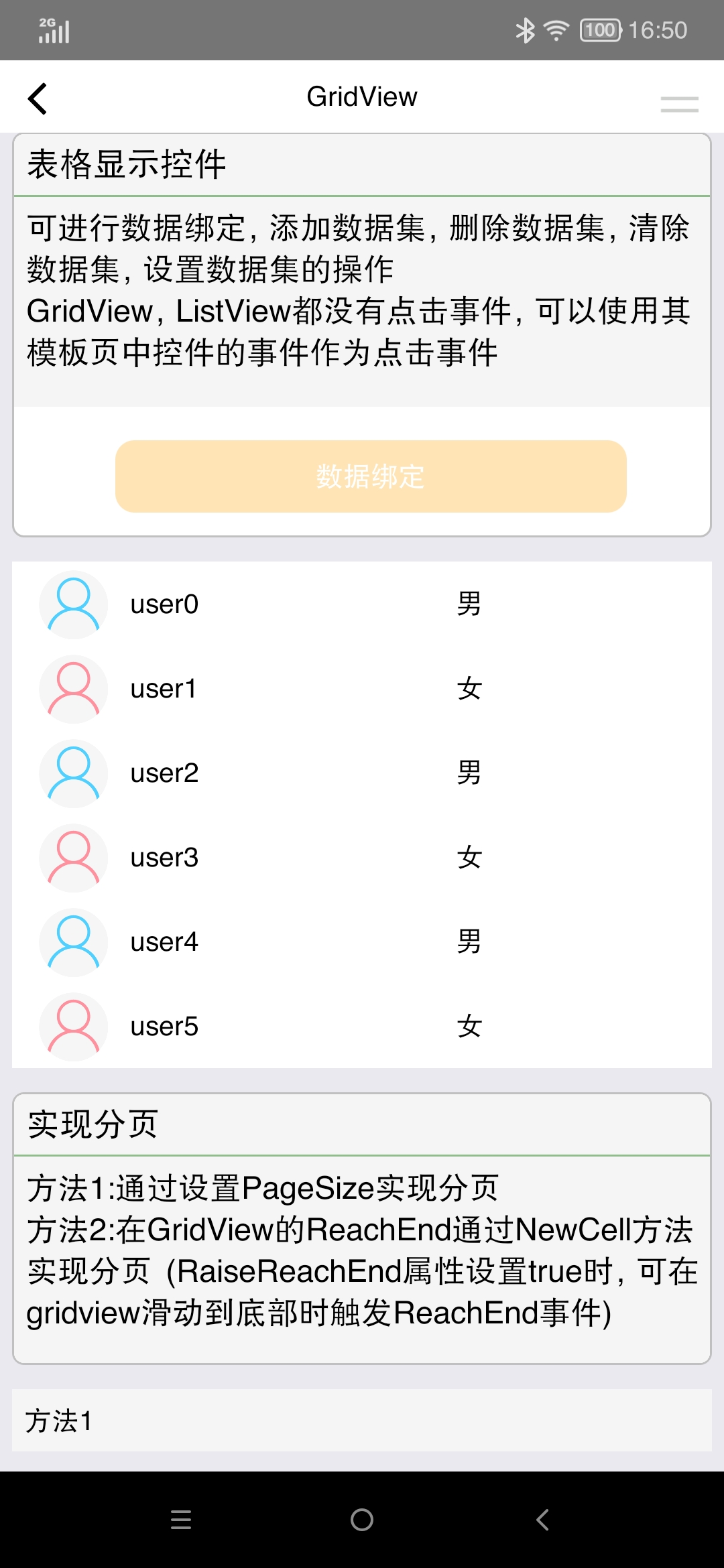

手机端效果

web端效果

demoGridView.cs

demoGridView.Designer.cs

模板类 listViewTemplate.cs

模板类 listViewTemplate.Designer.cs

模板类 gridViewTemplate.cs

模板类 gridViewTemplate.Designer.cs

模板类 editLayout.cs

模板类 editLayout.Designer.cs

web:demoGridView.cs

web:demoGridView.Designer.cs

web:模板类 demoListViewTemplate.cs

web:模板类 demoListViewTemplate.Designer.cs

web:模板类 demoGridViewTemplate.cs

web:模板类 demoGridViewTemplate.Designer.cs

web:模板类 demoListViewEditTemplate.cs

web:模板类 demoListViewEditTemplate.Designer.cs

                        using System;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace Smobiler.Tutorials.Components
{
    partial class demoGridView : Smobiler.Core.Controls.MobileForm
    {
        public demoGridView() : base()
        {
            //This call is required by the SmobilerForm.
            InitializeComponent();
        }
        private void title1_ImagePress(object sender, EventArgs e)
        {
            this.Close();
        }
        private void demoGridView_Load(object sender, EventArgs e)
        {
            PopListGroup pg1 = new PopListGroup();
            pg1.AddListItem("DataBind");
            pg1.AddListItem("删除行");
            pg1.AddListItem("清空");
            pg1.AddListItem("新增行");
            pg1.AddListItem("编辑");
            popList1.Groups.Add(pg1);
            DataTable dt = new DataTable();
            dt.Columns.Add("img");
            dt.Columns.Add("id");
            dt.Columns.Add("name");
            dt.Columns.Add("sexual");
            string[] sex = new string[] { "男", "女" };
            string[] pic = new string[] { "boy.png", "girl.png" };
            for (int i = 0; i < 8; i++)
            {
                dt.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
            }
            //gridView2绑定数据
            gridView2.TemplateControl = new listViewTemplate();
            gridView2.DataSource = dt;
            gridView2.DataBind();
            //gridView3绑定数据
            gridView3.TemplateControl = new listViewTemplate();
            gridView3.DataSource = dt;
            gridView3.DataBind();

            //gridView4 绑定数据
            DataTable dt1 = new DataTable();
            dt1.Columns.Add("img");
            dt1.Columns.Add("lab");
            dt1.Rows.Add("CF", "item1");
            dt1.Rows.Add("FZ", "item2");
            dt1.Rows.Add("GL", "item3");
            dt1.Rows.Add("KD", "item4");
            dt1.Rows.Add("WX", "item5");
            dt1.Rows.Add("XZ", "item6");
            dt1.Rows.Add("YJ", "item7");
            dt1.Rows.Add("ZS", "item8");
            gridView4.TemplateControl = new gridViewTemplate();
            gridView4.DataSource = dt1;
            gridView4.DataBind();
        }
        private void button1_Press(object sender, EventArgs e)
        {
            popList1.ShowDialog();
        }
        private void popList1_Selected(object sender, EventArgs e)
        {
            switch (popList1.Selections[0].Text)
            {
                case "DataBind":
                    DataBind();
                    button1.Text = "数据绑定";
                    break;
                case "删除行":
                    if (gridView1.Cells.Count > 0)
                    {
                        int i = gridView1.Cells.Count;
                        gridView1.Cells.RemoveAt(i - 1);
                        labContent.Text = "gridView1.Cells.Remove ,gridView1.Cells.RemoveAt删除行。";
                    }
                    button1.Text = "删除行";
                    break;
                case "清空":
                    gridView1.Cells.Clear();
                    button1.Text = "清空";
                    break;
                case "新增行":
                    gridTable = new DataTable();
                    gridTable.Columns.Add("img");
                    gridTable.Columns.Add("id");
                    gridTable.Columns.Add("name");
                    gridTable.Columns.Add("sexual");
                    string[] sex = new string[] { "男", "女" };
                    string[] pic = new string[] { "boy.png", "girl.png" };
                    for (int i = 6; i < 12; i++)
                    {
                        gridTable.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
                    }
                    gridView1.NewCell(gridTable, "");
                    labContent.Text = "gridView1.NewCell 新增行。";
                    button1.Text = "新增行";
                    break;
                case "编辑":
                    button1.Text = "点击行项进行编辑";
                    break;
            }
        }
        DataTable gridTable;
        private void DataBind()
        {
            gridTable = new DataTable();
            gridTable.Columns.Add("img");
            gridTable.Columns.Add("id");
            gridTable.Columns.Add("name");
            gridTable.Columns.Add("sexual");
            string[] sex = new string[] { "男", "女" };
            string[] pic = new string[] { "boy.png", "girl.png" };
            for (int i = 0; i < 6; i++)
            {
                gridTable.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
            }

            if (gridTable.Rows.Count > 0)
            {
                gridView1.DataSource = gridTable;
                gridView1.DataBind();
            }

        }
        int n = 5;
        private void gridView3_ReachEnd(object sender, EventArgs e)
        {
            if (n < 30)
            {
                DataTable dt = new DataTable();
                dt.Columns.Add("img");
                dt.Columns.Add("id");
                dt.Columns.Add("name");
                dt.Columns.Add("sexual");
                string[] sex = new string[] { "男", "女" };
                string[] pic = new string[] { "boy.png", "girl.png" };
                for (int i = n; i < n + 5; i++)
                {
                    dt.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
                }
                gridView3.NewCell(dt, "");
                n += 5;
            }
        }
    }
}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.Components
{
    partial class demoGridView : Smobiler.Core.Controls.MobileForm
    {
        #region "SmobilerForm generated code "

        //SmobilerForm overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }


        //NOTE: The following procedure is required by the SmobilerForm
        //It can be modified using the SmobilerForm.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.panel2 = new Smobiler.Core.Controls.Panel();
            this.labContent = new Smobiler.Core.Controls.Label();
            this.labTitle = new Smobiler.Core.Controls.Label();
            this.button1 = new Smobiler.Core.Controls.Button();
            this.gridView1 = new Smobiler.Core.Controls.GridView();
            this.panel3 = new Smobiler.Core.Controls.Panel();
            this.label1 = new Smobiler.Core.Controls.Label();
            this.label2 = new Smobiler.Core.Controls.Label();
            this.label3 = new Smobiler.Core.Controls.Label();
            this.label4 = new Smobiler.Core.Controls.Label();
            this.gridView2 = new Smobiler.Core.Controls.GridView();
            this.gridView3 = new Smobiler.Core.Controls.GridView();
            this.panel4 = new Smobiler.Core.Controls.Panel();
            this.label5 = new Smobiler.Core.Controls.Label();
            this.label6 = new Smobiler.Core.Controls.Label();
            this.gridView4 = new Smobiler.Core.Controls.GridView();
            this.title1 = new Smobiler.Core.Controls.Title();
            this.popList1 = new Smobiler.Core.Controls.PopList();
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel2,
            this.gridView1,
            this.panel3,
            this.label3,
            this.label4,
            this.gridView2,
            this.gridView3,
            this.panel4,
            this.gridView4});
            this.panel1.Flex = 1;
            this.panel1.Name = "panel1";
            this.panel1.Scrollable = true;
            this.panel1.Size = new System.Drawing.Size(300, 100);
            //
            // panel2
            //
            this.panel2.BackColor = System.Drawing.Color.White;
            this.panel2.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel2.BorderColor = System.Drawing.Color.Silver;
            this.panel2.BorderRadius = 5;
            this.panel2.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.labContent,
            this.labTitle,
            this.button1});
            this.panel2.Location = new System.Drawing.Point(5, 10);
            this.panel2.Name = "panel2";
            this.panel2.Size = new System.Drawing.Size(290, 168);
            //
            // labContent
            //
            this.labContent.BackColor = System.Drawing.Color.WhiteSmoke;
            this.labContent.FontSize = 15F;
            this.labContent.Location = new System.Drawing.Point(0, 26);
            this.labContent.Name = "labContent";
            this.labContent.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labContent.Size = new System.Drawing.Size(290, 87);
            this.labContent.Text = "可进行数据绑定，添加数据集，删除数据集，清除数据集，设置数据集的操作\r\nGridView，ListView都没有点击事件，可以使用其模板页中控件的事件作为点击事件" +
    "\r\n";
            this.labContent.VerticalAlignment = Smobiler.Core.Controls.VerticalAlignment.Top;
            //
            // labTitle
            //
            this.labTitle.BackColor = System.Drawing.Color.WhiteSmoke;
            this.labTitle.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.labTitle.BorderColor = System.Drawing.Color.DarkSeaGreen;
            this.labTitle.FontSize = 16F;
            this.labTitle.Name = "labTitle";
            this.labTitle.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labTitle.Size = new System.Drawing.Size(290, 26);
            this.labTitle.Text = "表格显示控件";
            //
            // button1
            //
            this.button1.BackColor = System.Drawing.Color.Moccasin;
            this.button1.Location = new System.Drawing.Point(42, 127);
            this.button1.Name = "button1";
            this.button1.Size = new System.Drawing.Size(212, 30);
            this.button1.Text = "控件介绍";
            this.button1.Press += new System.EventHandler(this.button1_Press);
            //
            // gridView1
            //
            this.gridView1.BackColor = System.Drawing.Color.White;
            this.gridView1.Location = new System.Drawing.Point(5, 188);
            this.gridView1.Name = "gridView1";
            this.gridView1.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView1.PageSizeTextSize = 11F;
            this.gridView1.Size = new System.Drawing.Size(290, 210);
            this.gridView1.TemplateControlName = "listViewTemplate";
            //
            // panel3
            //
            this.panel3.BackColor = System.Drawing.Color.White;
            this.panel3.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel3.BorderColor = System.Drawing.Color.Silver;
            this.panel3.BorderRadius = 5;
            this.panel3.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.label1,
            this.label2});
            this.panel3.Location = new System.Drawing.Point(5, 408);
            this.panel3.Name = "panel3";
            this.panel3.Size = new System.Drawing.Size(290, 113);
            //
            // label1
            //
            this.label1.BackColor = System.Drawing.Color.WhiteSmoke;
            this.label1.FontSize = 15F;
            this.label1.Location = new System.Drawing.Point(0, 26);
            this.label1.Name = "label1";
            this.label1.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.label1.Size = new System.Drawing.Size(290, 86);
            this.label1.Text = "方法1：通过设置PageSize实现分页\r\n方法2:在GridView的ReachEnd通过NewCell方法实现分页 （RaiseReachEnd属性设置tru" +
    "e时，可在gridview滑动到底部时触发ReachEnd事件）";
            this.label1.VerticalAlignment = Smobiler.Core.Controls.VerticalAlignment.Top;
            //
            // label2
            //
            this.label2.BackColor = System.Drawing.Color.WhiteSmoke;
            this.label2.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.label2.BorderColor = System.Drawing.Color.DarkSeaGreen;
            this.label2.FontSize = 16F;
            this.label2.Name = "label2";
            this.label2.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.label2.Size = new System.Drawing.Size(290, 26);
            this.label2.Text = "实现分页";
            //
            // label3
            //
            this.label3.BackColor = System.Drawing.Color.WhiteSmoke;
            this.label3.Location = new System.Drawing.Point(5, 531);
            this.label3.Name = "label3";
            this.label3.Padding = new Smobiler.Core.Controls.Padding(5F, 0F, 0F, 0F);
            this.label3.Size = new System.Drawing.Size(290, 26);
            this.label3.Text = "方法1";
            //
            // label4
            //
            this.label4.BackColor = System.Drawing.Color.WhiteSmoke;
            this.label4.Location = new System.Drawing.Point(5, 751);
            this.label4.Name = "label4";
            this.label4.Padding = new Smobiler.Core.Controls.Padding(5F, 0F, 0F, 0F);
            this.label4.Size = new System.Drawing.Size(290, 26);
            this.label4.Text = "方法2";
            //
            // gridView2
            //
            this.gridView2.BackColor = System.Drawing.Color.White;
            this.gridView2.Location = new System.Drawing.Point(5, 567);
            this.gridView2.Name = "gridView2";
            this.gridView2.PageSize = 5;
            this.gridView2.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView2.PageSizeTextSize = 11F;
            this.gridView2.Size = new System.Drawing.Size(290, 174);
            //
            // gridView3
            //
            this.gridView3.BackColor = System.Drawing.Color.White;
            this.gridView3.Location = new System.Drawing.Point(5, 787);
            this.gridView3.Name = "gridView3";
            this.gridView3.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView3.PageSizeTextSize = 11F;
            this.gridView3.RaiseReachEnd = true;
            this.gridView3.Size = new System.Drawing.Size(290, 174);
            this.gridView3.ReachEnd += new System.EventHandler(this.gridView3_ReachEnd);
            //
            // panel4
            //
            this.panel4.BackColor = System.Drawing.Color.White;
            this.panel4.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel4.BorderColor = System.Drawing.Color.Silver;
            this.panel4.BorderRadius = 5;
            this.panel4.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.label5,
            this.label6});
            this.panel4.Location = new System.Drawing.Point(5, 971);
            this.panel4.Name = "panel4";
            this.panel4.Size = new System.Drawing.Size(290, 97);
            //
            // label5
            //
            this.label5.BackColor = System.Drawing.Color.WhiteSmoke;
            this.label5.FontSize = 15F;
            this.label5.Location = new System.Drawing.Point(0, 26);
            this.label5.Name = "label5";
            this.label5.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.label5.Size = new System.Drawing.Size(290, 71);
            this.label5.Text = "ColumnNum属性设置显示列数，只需设置ColumnNum=4，并且更换模板就可以很方便的实现\r\n";
            //
            // label6
            //
            this.label6.BackColor = System.Drawing.Color.WhiteSmoke;
            this.label6.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.label6.BorderColor = System.Drawing.Color.DarkSeaGreen;
            this.label6.FontSize = 16F;
            this.label6.Name = "label6";
            this.label6.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.label6.Size = new System.Drawing.Size(290, 26);
            this.label6.Text = "实现IconMenuView";
            //
            // gridView4
            //
            this.gridView4.BackColor = System.Drawing.Color.White;
            this.gridView4.ColumnNum = 4;
            this.gridView4.Location = new System.Drawing.Point(5, 1078);
            this.gridView4.Name = "gridView4";
            this.gridView4.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView4.PageSizeTextSize = 11F;
            this.gridView4.Size = new System.Drawing.Size(290, 140);
            //
            // title1
            //
            this.title1.ImageType = Smobiler.Core.Controls.ImageEx.ImageStyle.FontIcon;
            this.title1.Name = "title1";
            this.title1.ResourceID = "angle-left";
            this.title1.Size = new System.Drawing.Size(300, 30);
            this.title1.Text = "GridView";
            this.title1.ImagePress += new System.EventHandler(this.title1_ImagePress);
            //
            // popList1
            //
            this.popList1.Name = "popList1";
            this.popList1.Selected += new System.EventHandler(this.popList1_Selected);
            //
            // demoGridView
            //
            this.Components.AddRange(new Smobiler.Core.Controls.MobileComponent[] {
            this.popList1});
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Load += new System.EventHandler(this.demoGridView_Load);
            this.Name = "demoGridView";

        }
        #endregion
        private Core.Controls.Panel panel1;
        private Core.Controls.Title title1;
        private Core.Controls.PopList popList1;
        private Core.Controls.Panel panel2;
        private Core.Controls.Label labContent;
        private Core.Controls.Label labTitle;
        private Core.Controls.Button button1;
        private Core.Controls.GridView gridView1;
        private Core.Controls.Panel panel3;
        private Core.Controls.Label label1;
        private Core.Controls.Label label2;
        private Core.Controls.Label label3;
        private Core.Controls.Label label4;
        private Core.Controls.GridView gridView2;
        private Core.Controls.GridView gridView3;
        private Core.Controls.Panel panel4;
        private Core.Controls.Label label5;
        private Core.Controls.Label label6;
        private Core.Controls.GridView gridView4;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace Smobiler.Tutorials.Components
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class listViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        public listViewTemplate() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }

        private void panel1_Press(object sender, EventArgs e)
        {
            editLayout lp = new editLayout(label1.BindDataValue.ToString(), label1.Text, label2.Text, image1.ResourceID);
            this.Form.ShowDialog(lp, (obj, args) =>
            {
                if (lp.ShowResult == ShowResult.Yes)
                {
                    label1.Text = lp.text1;
                    label2.Text = lp.text2;
                }
            });
        }
    }
}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.Components
{
    partial class listViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.image1 = new Smobiler.Core.Controls.Image();
            this.label1 = new Smobiler.Core.Controls.Label();
            this.label2 = new Smobiler.Core.Controls.Label();
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1,
            this.label1,
            this.label2});
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(0, 100);
            this.panel1.Touchable = true;
            this.panel1.Press += new System.EventHandler(this.panel1_Press);
            //
            // image1
            //
            this.image1.DisplayMember = "img";
            this.image1.Location = new System.Drawing.Point(11, 3);
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(29, 30);
            //
            // label1
            //
            this.label1.DataMember = "id";
            this.label1.DisplayMember = "name";
            this.label1.Location = new System.Drawing.Point(49, 0);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(135, 35);
            this.label1.Text = "label1";
            //
            // label2
            //
            this.label2.DisplayMember = "sexual";
            this.label2.Location = new System.Drawing.Point(184, 0);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(91, 35);
            this.label2.Text = "label1";
            //
            // listViewTemplate
            //
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(290, 35);
            this.Name = "listViewTemplate";

        }
        #endregion

        private Core.Controls.Panel panel1;
        private Core.Controls.Image image1;
        private Core.Controls.Label label1;
        private Core.Controls.Label label2;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace Smobiler.Tutorials.Components
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class gridViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        public gridViewTemplate() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }

        private void panel1_Press(object sender, EventArgs e)
        {
            Toast(label1.Text);
        }
    }
}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.Components
{
    partial class gridViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.image1 = new Smobiler.Core.Controls.Image();
            this.label1 = new Smobiler.Core.Controls.Label();
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1,
            this.label1});
            this.panel1.Flex = 1;
            this.panel1.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(0, 100);
            this.panel1.Touchable = true;
            this.panel1.Press += new System.EventHandler(this.panel1_Press);
            //
            // image1
            //
            this.image1.DisplayMember = "img";
            this.image1.Flex = 5;
            this.image1.Margin = new Smobiler.Core.Controls.Margin(10F, 5F, 10F, 5F);
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(0, 43);
            //
            // label1
            //
            this.label1.DisplayMember = "lab";
            this.label1.Flex = 2;
            this.label1.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.label1.Margin = new Smobiler.Core.Controls.Margin(0F, 0F, 0F, 5F);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(0, 27);
            this.label1.Text = "label1";
            //
            // gridViewTemplate
            //
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(70, 70);
            this.Name = "gridViewTemplate";

        }
        #endregion

        private Core.Controls.Panel panel1;
        private Core.Controls.Image image1;
        private Core.Controls.Label label1;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace Smobiler.Tutorials.Components
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class editLayout : Smobiler.Core.Controls.MobileUserControl
    {
        public string text1 { get { return textBox1.Text; } }
        public string text2 { get { return textBox2.Text; } }
        public editLayout() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }
        public editLayout(string id, string name, string sexual, string img) : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
            label2.Text = id;
            textBox1.Text = name;
            textBox2.Text = sexual;
            image1.ResourceID = img;
        }

        private void button1_Press(object sender, EventArgs e)
        {
            this.ShowResult = ShowResult.Cancel;
            this.Close();
        }

        private void button2_Press(object sender, EventArgs e)
        {
            this.ShowResult = ShowResult.Yes;
            this.Close();

        }
    }
}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.Components
{
    partial class editLayout : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.image1 = new Smobiler.Core.Controls.Image();
            this.textBox1 = new Smobiler.Core.Controls.TextBox();
            this.textBox2 = new Smobiler.Core.Controls.TextBox();
            this.button1 = new Smobiler.Core.Controls.Button();
            this.button2 = new Smobiler.Core.Controls.Button();
            this.label1 = new Smobiler.Core.Controls.Label();
            this.label2 = new Smobiler.Core.Controls.Label();
            //
            // title1
            //
            this.title1.Name = "title1";
            this.title1.Size = new System.Drawing.Size(0, 30);
            this.title1.Text = "编辑";
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1,
            this.textBox1,
            this.textBox2,
            this.button1,
            this.button2,
            this.label1,
            this.label2});
            this.panel1.Direction = Smobiler.Core.Controls.LayoutDirection.Row;
            this.panel1.Flex = 1;
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(0, 100);
            this.panel1.Touchable = true;
            //
            // image1
            //
            this.image1.Location = new System.Drawing.Point(27, 55);
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(81, 79);
            //
            // textBox1
            //
            this.textBox1.Border = new Smobiler.Core.Controls.Border(1F);
            this.textBox1.BorderColor = System.Drawing.Color.FromArgb(((int)(((byte)(76)))), ((int)(((byte)(176)))), ((int)(((byte)(249)))));
            this.textBox1.Location = new System.Drawing.Point(142, 81);
            this.textBox1.Name = "textBox1";
            this.textBox1.Size = new System.Drawing.Size(120, 35);
            //
            // textBox2
            //
            this.textBox2.Border = new Smobiler.Core.Controls.Border(1F);
            this.textBox2.BorderColor = System.Drawing.Color.FromArgb(((int)(((byte)(76)))), ((int)(((byte)(176)))), ((int)(((byte)(249)))));
            this.textBox2.Location = new System.Drawing.Point(142, 134);
            this.textBox2.Name = "textBox2";
            this.textBox2.Size = new System.Drawing.Size(120, 35);
            //
            // button1
            //
            this.button1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(255)))), ((int)(((byte)(67)))), ((int)(((byte)(81)))));
            this.button1.Location = new System.Drawing.Point(27, 194);
            this.button1.Name = "button1";
            this.button1.Size = new System.Drawing.Size(100, 30);
            this.button1.Text = "取消";
            this.button1.Press += new System.EventHandler(this.button1_Press);
            //
            // button2
            //
            this.button2.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(76)))), ((int)(((byte)(176)))), ((int)(((byte)(249)))));
            this.button2.Location = new System.Drawing.Point(174, 194);
            this.button2.Name = "button2";
            this.button2.Size = new System.Drawing.Size(100, 30);
            this.button2.Text = "保存";
            this.button2.Press += new System.EventHandler(this.button2_Press);
            //
            // label1
            //
            this.label1.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Right;
            this.label1.Location = new System.Drawing.Point(142, 26);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(48, 35);
            this.label1.Text = "id：";
            //
            // label2
            //
            this.label2.Location = new System.Drawing.Point(190, 26);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(72, 35);
            this.label2.Text = "label2";
            //
            // editLayout
            //
            this.BackColor = System.Drawing.Color.White;
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(0, 300);
            this.Name = "editLayout";

        }
        #endregion

        private Core.Controls.Title title1;
        private Core.Controls.Panel panel1;
        private Core.Controls.Image image1;
        private Core.Controls.TextBox textBox1;
        private Core.Controls.TextBox textBox2;
        private Core.Controls.Button button1;
        private Core.Controls.Button button2;
        private Core.Controls.Label label1;
        private Core.Controls.Label label2;
    }
}

using System;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;
using Smobiler.Plugins;
using SmobilerTutorialsWeb.UserControls;

namespace SmobilerTutorialsWeb.Components
{
    partial class demoGridView : Smobiler.Core.Controls.MobileForm
    {
        public demoGridView() : base()
        {
            //This call is required by the SmobilerForm.
            InitializeComponent();
        }

        private void title1_ImagePress(object sender, EventArgs e)
        {
            this.Close();
        }

        private void demoGridView_Load(object sender, EventArgs e)
        {
            spinner1.Items = new string[] { "DataBind",  "删除行", "清空", "新增行", "编辑" };
            DataTable dt = new DataTable();
            dt.Columns.Add("img");
            dt.Columns.Add("id");
            dt.Columns.Add("name");
            dt.Columns.Add("sexual");
            string[] sex = new string[] { "男", "女" };
            string[] pic = new string[] { "boy.png", "girl.png" };
            for (int i = 0; i < 8; i++)
            {
                dt.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
            }
            //gridView2绑定数据
            gridView2.TemplateControl = new demoListViewTemplate();
            gridView2.DataSource = dt;
            gridView2.DataBind();
            //gridView3绑定数据
            gridView3.TemplateControl = new demoListViewTemplate();
            gridView3.DataSource = dt;
            gridView3.DataBind();

            //gridView4 绑定数据
            DataTable dt1 = new DataTable();
            dt1.Columns.Add("img");
            dt1.Columns.Add("lab");
            dt1.Rows.Add("CF", "item1");
            dt1.Rows.Add("FZ", "item2");
            dt1.Rows.Add("GL", "item3");
            dt1.Rows.Add("KD", "item4");
            dt1.Rows.Add("WX", "item5");
            dt1.Rows.Add("XZ", "item6");
            dt1.Rows.Add("YJ", "item7");
            dt1.Rows.Add("ZS", "item8");
            gridView4.TemplateControl = new demoGridViewTemplate();
            gridView4.DataSource = dt1;
            gridView4.DataBind();

        }
        private void spinner1_ItemSelected(object sender, SpinnerItemSelectedEventArgs e)
        {
            switch (spinner1.Text)
            {
                case "DataBind":
                    DataBind();
                    labContent.Text = "数据绑定";
                    break;

                case "删除行":
                    if (gridView1.Cells.Count > 0)
                    {
                        int i = gridView1.Cells.Count;
                        gridView1.Cells.RemoveAt(i - 1);
                        labContent.Text = "gridView1.Cells.Remove ,gridView1.Cells.RemoveAt删除行。";
                    }
                    break;
                case "清空":
                    gridView1.Cells.Clear();
                    labContent.Text = " gridView1.Cells.Clear清空数据。";
                    break;
                case "新增行":
                    gridTable = new DataTable();
                    gridTable.Columns.Add("img");
                    gridTable.Columns.Add("id");
                    gridTable.Columns.Add("name");
                    gridTable.Columns.Add("sexual");
                    string[] sex = new string[] { "男", "女" };
                    string[] pic = new string[] { "boy.png", "girl.png" };
                    for (int i = 9; i < 12; i++)
                    {
                        gridTable.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
                    }
                    gridView1.NewCell(gridTable, "");
                    labContent.Text = "gridView1.NewCell 新增行。";
                    break;
                case "编辑":

                    labContent.Text = "点击行项进行编辑。";
                    break;

            }
        }
        DataTable gridTable;
        private void DataBind()
        {
            gridTable = new DataTable();
            gridTable.Columns.Add("img");
            gridTable.Columns.Add("id");
            gridTable.Columns.Add("name");
            gridTable.Columns.Add("sexual");
            string[] sex = new string[] { "男", "女" };
            string[] pic = new string[] { "boy.png", "girl.png" };
            for (int i = 0; i < 8; i++)
            {
                gridTable.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
            }

            if (gridTable.Rows.Count > 0)
            {
                gridView1.DataSource = gridTable;
                gridView1.DataBind();
            }

        }
        int n = 5;
        private void gridView3_ReachEnd(object sender, EventArgs e)
        {
            if (n < 30)
            {
                DataTable dt = new DataTable();
                dt.Columns.Add("img");
                dt.Columns.Add("id");
                dt.Columns.Add("name");
                dt.Columns.Add("sexual");
                string[] sex = new string[] { "男", "女" };
                string[] pic = new string[] { "boy.png", "girl.png" };
                for (int i = n; i < n + 5; i++)
                {
                    dt.Rows.Add(pic[i%2], i, "user" + i.ToString(), sex[i % 2]);
                }
                gridView3.NewCell(dt, "");
                n += 5;
            }
        }

    }
}

using System;
using Smobiler.Core;
namespace SmobilerTutorialsWeb.Components
{
    partial class demoGridView : Smobiler.Core.Controls.MobileForm
    {
        #region "SmobilerForm generated code "

        //SmobilerForm overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }


        //NOTE: The following procedure is required by the SmobilerForm
        //It can be modified using the SmobilerForm.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.panel2 = new Smobiler.Core.Controls.Panel();
            this.labContent = new Smobiler.Core.Controls.Label();
            this.spinner1 = new Smobiler.Core.Controls.Spinner();
            this.gridView1 = new Smobiler.Core.Controls.GridView();
            this.label4 = new Smobiler.Core.Controls.Label();
            this.label2 = new Smobiler.Core.Controls.Label();
            this.panel3 = new Smobiler.Core.Controls.Panel();
            this.label1 = new Smobiler.Core.Controls.Label();
            this.label3 = new Smobiler.Core.Controls.Label();
            this.gridView2 = new Smobiler.Core.Controls.GridView();
            this.gridView3 = new Smobiler.Core.Controls.GridView();
            this.label6 = new Smobiler.Core.Controls.Label();
            this.panel4 = new Smobiler.Core.Controls.Panel();
            this.label7 = new Smobiler.Core.Controls.Label();
            this.gridView4 = new Smobiler.Core.Controls.GridView();
            //
            // title1
            //
            this.title1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(246)))), ((int)(((byte)(246)))), ((int)(((byte)(246)))));
            this.title1.ImageType = Smobiler.Core.Controls.ImageEx.ImageStyle.FontIcon;
            this.title1.Name = "title1";
            this.title1.ResourceID = "angle-left";
            this.title1.Size = new System.Drawing.Size(0, 30);
            this.title1.Text = "GridView";
            this.title1.ImagePress += new System.EventHandler(this.title1_ImagePress);
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel2,
            this.label4,
            this.label2,
            this.panel3,
            this.label6,
            this.panel4});
            this.panel1.Flex = 1;
            this.panel1.Name = "panel1";
            this.panel1.Scrollable = true;
            this.panel1.Size = new System.Drawing.Size(0, 100);
            //
            // panel2
            //
            this.panel2.BackColor = System.Drawing.Color.White;
            this.panel2.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel2.BorderColor = System.Drawing.Color.Silver;
            this.panel2.BorderRadius = 5;
            this.panel2.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.labContent,
            this.spinner1,
            this.gridView1});
            this.panel2.Location = new System.Drawing.Point(120, 57);
            this.panel2.Name = "panel2";
            this.panel2.Size = new System.Drawing.Size(427, 454);
            //
            // labContent
            //
            this.labContent.BackColor = System.Drawing.Color.White;
            this.labContent.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.labContent.Location = new System.Drawing.Point(0, 92);
            this.labContent.Name = "labContent";
            this.labContent.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labContent.Size = new System.Drawing.Size(427, 54);
            this.labContent.Text = "点击上方选项，可进行数据绑定，添加行，删除行，清空，根据数据源添加，index事件\r\n";
            //
            // spinner1
            //
            this.spinner1.Location = new System.Drawing.Point(114, 27);
            this.spinner1.Name = "spinner1";
            this.spinner1.Size = new System.Drawing.Size(200, 30);
            this.spinner1.ItemSelected += new System.EventHandler<Smobiler.Core.Controls.SpinnerItemSelectedEventArgs>(this.spinner1_ItemSelected);
            //
            // gridView1
            //
            this.gridView1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(20)))), ((int)(((byte)(102)))), ((int)(((byte)(102)))), ((int)(((byte)(102)))));
            this.gridView1.Location = new System.Drawing.Point(64, 181);
            this.gridView1.Name = "gridView1";
            this.gridView1.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView1.PageSizeTextSize = 11F;
            this.gridView1.Size = new System.Drawing.Size(300, 218);
            this.gridView1.TemplateControlName = "demoListViewTemplate";
            //
            // label4
            //
            this.label4.BackColor = System.Drawing.Color.White;
            this.label4.Bold = true;
            this.label4.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.label4.BorderColor = System.Drawing.Color.White;
            this.label4.FontSize = 16F;
            this.label4.Location = new System.Drawing.Point(120, 30);
            this.label4.Name = "label4";
            this.label4.Size = new System.Drawing.Size(427, 26);
            this.label4.Text = "表格显示控件";
            //
            // label2
            //
            this.label2.BackColor = System.Drawing.Color.White;
            this.label2.Bold = true;
            this.label2.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.label2.BorderColor = System.Drawing.Color.White;
            this.label2.FontSize = 16F;
            this.label2.Location = new System.Drawing.Point(646, 30);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(427, 26);
            this.label2.Text = "实现分页";
            //
            // panel3
            //
            this.panel3.BackColor = System.Drawing.Color.White;
            this.panel3.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel3.BorderColor = System.Drawing.Color.Silver;
            this.panel3.BorderRadius = 5;
            this.panel3.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.label1,
            this.label3,
            this.gridView2,
            this.gridView3});
            this.panel3.Location = new System.Drawing.Point(646, 57);
            this.panel3.Name = "panel3";
            this.panel3.Size = new System.Drawing.Size(427, 454);
            //
            // label1
            //
            this.label1.BackColor = System.Drawing.Color.White;
            this.label1.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.label1.Location = new System.Drawing.Point(0, 185);
            this.label1.Name = "label1";
            this.label1.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.label1.Size = new System.Drawing.Size(427, 33);
            this.label1.Text = "方法1：通过设置PageSize实现分页\r\n\r\n";
            //
            // label3
            //
            this.label3.BackColor = System.Drawing.Color.White;
            this.label3.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.label3.Location = new System.Drawing.Point(0, 409);
            this.label3.Name = "label3";
            this.label3.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.label3.Size = new System.Drawing.Size(427, 45);
            this.label3.Text = "方法2：在GridView的ReachEnd通过NewCell方法实现分页 （RaiseReachEnd属性设置true时，可在gridview滑动到底部时触发R" +
    "eachEnd事件）\r\n";
            //
            // gridView2
            //
            this.gridView2.Location = new System.Drawing.Point(60, 20);
            this.gridView2.Name = "gridView2";
            this.gridView2.PageSize = 3;
            this.gridView2.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView2.PageSizeTextSize = 11F;
            this.gridView2.Size = new System.Drawing.Size(300, 141);
            //
            // gridView3
            //
            this.gridView3.Location = new System.Drawing.Point(60, 242);
            this.gridView3.Name = "gridView3";
            this.gridView3.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView3.PageSizeTextSize = 11F;
            this.gridView3.RaiseReachEnd = true;
            this.gridView3.Size = new System.Drawing.Size(300, 141);
            this.gridView3.ReachEnd += new System.EventHandler(this.gridView3_ReachEnd);
            //
            // label6
            //
            this.label6.BackColor = System.Drawing.Color.White;
            this.label6.Bold = true;
            this.label6.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.label6.BorderColor = System.Drawing.Color.White;
            this.label6.FontSize = 16F;
            this.label6.Location = new System.Drawing.Point(120, 541);
            this.label6.Name = "label6";
            this.label6.Size = new System.Drawing.Size(427, 26);
            this.label6.Text = "GridView 实现IconMenuView";
            //
            // panel4
            //
            this.panel4.BackColor = System.Drawing.Color.White;
            this.panel4.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel4.BorderColor = System.Drawing.Color.Silver;
            this.panel4.BorderRadius = 5;
            this.panel4.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.label7,
            this.gridView4});
            this.panel4.Location = new System.Drawing.Point(120, 568);
            this.panel4.Name = "panel4";
            this.panel4.Size = new System.Drawing.Size(427, 312);
            //
            // label7
            //
            this.label7.BackColor = System.Drawing.Color.White;
            this.label7.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.label7.Location = new System.Drawing.Point(0, 222);
            this.label7.Name = "label7";
            this.label7.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.label7.Size = new System.Drawing.Size(426, 54);
            this.label7.Text = "ColumnNum属性设置显示列数\r\n";
            //
            // gridView4
            //
            this.gridView4.ColumnNum = 4;
            this.gridView4.Location = new System.Drawing.Point(68, 57);
            this.gridView4.Name = "gridView4";
            this.gridView4.PageSizeTextColor = System.Drawing.Color.FromArgb(((int)(((byte)(145)))), ((int)(((byte)(145)))), ((int)(((byte)(145)))));
            this.gridView4.PageSizeTextSize = 11F;
            this.gridView4.Size = new System.Drawing.Size(300, 141);
            //
            // demoGridView
            //
            this.BackColor = System.Drawing.Color.White;
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(1200, 800);
            this.Load += new System.EventHandler(this.demoGridView_Load);
            this.Name = "demoGridView";

        }
        #endregion

        private Smobiler.Core.Controls.Title title1;
        private Smobiler.Core.Controls.Panel panel1;
        private Smobiler.Core.Controls.Panel panel2;
        private Smobiler.Core.Controls.Label labContent;
        private Smobiler.Core.Controls.Spinner spinner1;
        private Smobiler.Core.Controls.Label label4;
        private Smobiler.Core.Controls.GridView gridView1;
        private Smobiler.Core.Controls.Label label2;
        private Smobiler.Core.Controls.Panel panel3;
        private Smobiler.Core.Controls.Label label1;
        private Smobiler.Core.Controls.Label label3;
        private Smobiler.Core.Controls.GridView gridView2;
        private Smobiler.Core.Controls.GridView gridView3;
        private Smobiler.Core.Controls.Label label6;
        private Smobiler.Core.Controls.Panel panel4;
        private Smobiler.Core.Controls.Label label7;
        private Smobiler.Core.Controls.GridView gridView4;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace SmobilerTutorialsWeb.UserControls
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class demoListViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        public demoListViewTemplate() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }

        private void panel1_Press(object sender, EventArgs e)
        {
            demoListViewEditTemplate lp = new demoListViewEditTemplate(label1.BindDataValue.ToString(), label1.Text, label2.Text, image1.ResourceID);
            this.Form.ShowDialog(lp, (obj, args) =>
            {
                if (lp.ShowResult == ShowResult.Yes)
                {
                    label1.Text = lp.text1;
                    label2.Text = lp.text2;
                }
            });
        }
    }
}

using System;
using Smobiler.Core;
namespace SmobilerTutorialsWeb.UserControls
{
    partial class demoListViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.image1 = new Smobiler.Core.Controls.Image();
            this.label1 = new Smobiler.Core.Controls.Label();
            this.label2 = new Smobiler.Core.Controls.Label();
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1,
            this.label1,
            this.label2});
            this.panel1.Direction = Smobiler.Core.Controls.LayoutDirection.Row;
            this.panel1.Flex = 1;
            this.panel1.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(0, 100);
            this.panel1.Touchable = true;
            this.panel1.Press += new System.EventHandler(this.panel1_Press);
            //
            // image1
            //
            this.image1.DisplayMember = "img";
            this.image1.Margin = new Smobiler.Core.Controls.Margin(20F, 10F, 10F, 10F);
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(30, 30);
            //
            // label1
            //
            this.label1.BackColor = System.Drawing.Color.White;
            this.label1.DataMember = "id";
            this.label1.DisplayMember = "name";
            this.label1.FontSize = 14F;
            this.label1.Margin = new Smobiler.Core.Controls.Margin(10F);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(96, 30);
            this.label1.Text = "label1";
            //
            // label2
            //
            this.label2.DisplayMember = "sexual";
            this.label2.FontSize = 14F;
            this.label2.Margin = new Smobiler.Core.Controls.Margin(10F);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(93, 30);
            this.label2.Text = "label2";
            //
            // demoListViewTemplate
            //
            this.BackColor = System.Drawing.Color.White;
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(0, 50);
            this.Name = "demoListViewTemplate";

        }
        #endregion

        private Smobiler.Core.Controls.Panel panel1;
        private Smobiler.Core.Controls.Image image1;
        private Smobiler.Core.Controls.Label label1;
        private Smobiler.Core.Controls.Label label2;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace SmobilerTutorialsWeb.UserControls
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class demoGridViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        public demoGridViewTemplate() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }

        private void panel1_Press(object sender, EventArgs e)
        {
            Toast("当前点击项：" + label1.Text);
        }
    }
}

using System;
using Smobiler.Core;
namespace SmobilerTutorialsWeb.UserControls
{
    partial class demoGridViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.image1 = new Smobiler.Core.Controls.Image();
            this.label1 = new Smobiler.Core.Controls.Label();
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1,
            this.label1});
            this.panel1.Flex = 1;
            this.panel1.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(0, 100);
            this.panel1.Touchable = true;
            this.panel1.Press += new System.EventHandler(this.panel1_Press);
            //
            // image1
            //
            this.image1.DisplayMember = "img";
            this.image1.Flex = 5;
            this.image1.Margin = new Smobiler.Core.Controls.Margin(10F, 5F, 10F, 5F);
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(0, 43);
            //
            // label1
            //
            this.label1.DisplayMember = "lab";
            this.label1.Flex = 2;
            this.label1.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.label1.Margin = new Smobiler.Core.Controls.Margin(0F, 0F, 0F, 5F);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(0, 27);
            this.label1.Text = "label1";
            //
            // demoGridViewTemplate
            //
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(70, 70);
            this.Name = "demoGridViewTemplate";

        }
        #endregion

        private Smobiler.Core.Controls.Panel panel1;
        private Smobiler.Core.Controls.Image image1;
        private Smobiler.Core.Controls.Label label1;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace SmobilerTutorialsWeb.UserControls
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class demoListViewEditTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        public string text1 { get { return textBox1.Text; } }
        public string text2 { get { return textBox2.Text; } }
        public demoListViewEditTemplate() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }
        public demoListViewEditTemplate(string id,string name,string sexual,string img) : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
            label2.Text = id;
            textBox1.Text = name;
            textBox2.Text = sexual;
            image1.ResourceID = img;

        }
        private void panel1_Press(object sender, EventArgs e)
        {

        }

        private void button1_Press(object sender, EventArgs e)
        {
            this.ShowResult = ShowResult.Cancel;
            this.Close();
        }

        private void button2_Press(object sender, EventArgs e)
        {
            this.ShowResult = ShowResult.Yes;
            this.Close();
        }
    }
}

using System;
using Smobiler.Core;
namespace SmobilerTutorialsWeb.UserControls
{
    partial class demoListViewEditTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.image1 = new Smobiler.Core.Controls.Image();
            this.textBox1 = new Smobiler.Core.Controls.TextBox();
            this.textBox2 = new Smobiler.Core.Controls.TextBox();
            this.button1 = new Smobiler.Core.Controls.Button();
            this.button2 = new Smobiler.Core.Controls.Button();
            this.label1 = new Smobiler.Core.Controls.Label();
            this.label2 = new Smobiler.Core.Controls.Label();
            //
            // title1
            //
            this.title1.Name = "title1";
            this.title1.Size = new System.Drawing.Size(0, 30);
            this.title1.Text = "编辑";
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1,
            this.textBox1,
            this.textBox2,
            this.button1,
            this.button2,
            this.label1,
            this.label2});
            this.panel1.Direction = Smobiler.Core.Controls.LayoutDirection.Row;
            this.panel1.Flex = 1;
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(0, 100);
            this.panel1.Touchable = true;
            this.panel1.Press += new System.EventHandler(this.panel1_Press);
            //
            // image1
            //
            this.image1.Location = new System.Drawing.Point(130, 56);
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(81, 79);
            //
            // textBox1
            //
            this.textBox1.Border = new Smobiler.Core.Controls.Border(1F);
            this.textBox1.BorderColor = System.Drawing.Color.FromArgb(((int)(((byte)(76)))), ((int)(((byte)(176)))), ((int)(((byte)(249)))));
            this.textBox1.Location = new System.Drawing.Point(249, 76);
            this.textBox1.Name = "textBox1";
            this.textBox1.Size = new System.Drawing.Size(120, 35);
            //
            // textBox2
            //
            this.textBox2.Border = new Smobiler.Core.Controls.Border(1F);
            this.textBox2.BorderColor = System.Drawing.Color.FromArgb(((int)(((byte)(76)))), ((int)(((byte)(176)))), ((int)(((byte)(249)))));
            this.textBox2.Location = new System.Drawing.Point(249, 129);
            this.textBox2.Name = "textBox2";
            this.textBox2.Size = new System.Drawing.Size(120, 35);
            //
            // button1
            //
            this.button1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(255)))), ((int)(((byte)(67)))), ((int)(((byte)(81)))));
            this.button1.Location = new System.Drawing.Point(134, 189);
            this.button1.Name = "button1";
            this.button1.Size = new System.Drawing.Size(100, 30);
            this.button1.Text = "取消";
            this.button1.Press += new System.EventHandler(this.button1_Press);
            //
            // button2
            //
            this.button2.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(76)))), ((int)(((byte)(176)))), ((int)(((byte)(249)))));
            this.button2.Location = new System.Drawing.Point(281, 189);
            this.button2.Name = "button2";
            this.button2.Size = new System.Drawing.Size(100, 30);
            this.button2.Text = "保存";
            this.button2.Press += new System.EventHandler(this.button2_Press);
            //
            // label1
            //
            this.label1.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Right;
            this.label1.Location = new System.Drawing.Point(249, 21);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(48, 35);
            this.label1.Text = "id：";
            //
            // label2
            //
            this.label2.Location = new System.Drawing.Point(297, 21);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(72, 35);
            this.label2.Text = "label2";
            //
            // demoListViewEditTemplate
            //
            this.BackColor = System.Drawing.Color.White;
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(500, 300);
            this.Name = "demoListViewEditTemplate";

        }
        #endregion

        private Smobiler.Core.Controls.Title title1;
        private Smobiler.Core.Controls.Panel panel1;
        private Smobiler.Core.Controls.Image image1;
        private Smobiler.Core.Controls.TextBox textBox1;
        private Smobiler.Core.Controls.TextBox textBox2;
        private Smobiler.Core.Controls.Button button1;
        private Smobiler.Core.Controls.Button button2;
        private Smobiler.Core.Controls.Label label1;
        private Smobiler.Core.Controls.Label label2;
    }
}
