预览
代码

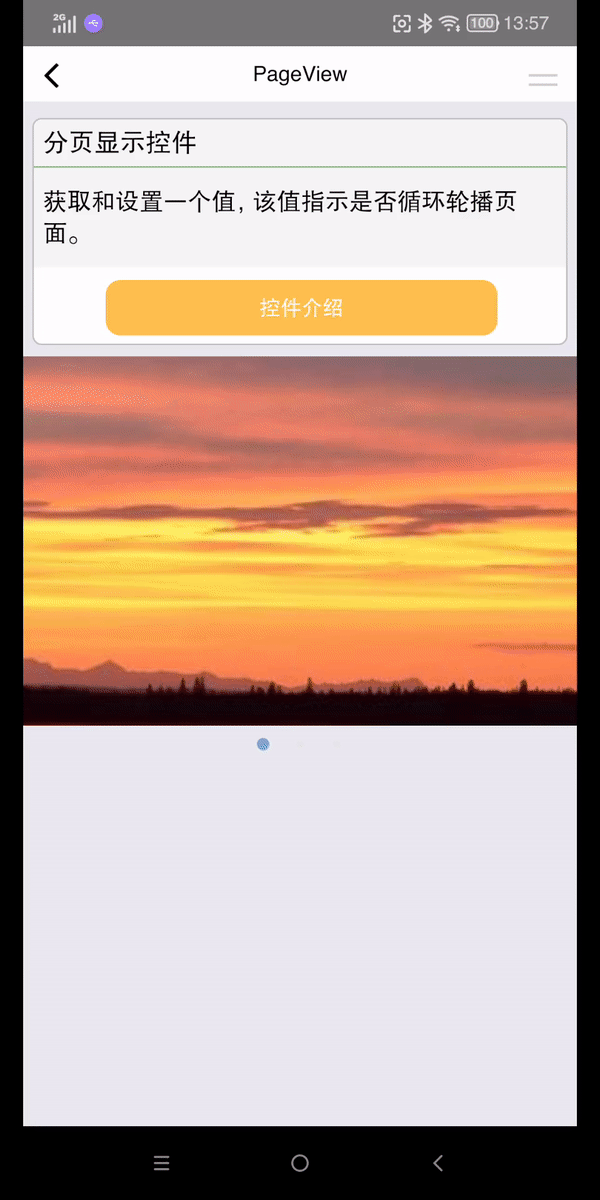

手机端效果

web端效果

demoPageView.cs

demoPageView.Designer.cs

模板类demoPageViewTemplate.cs

模板类demoPageViewTemplate.Designer.cs

web:demoPageView.cs

web:demoPageView.Designer.cs

模板类demoPageViewTemplate.cs

模板类demoPageViewTemplate.Designer.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;
using System.Data;

namespace Smobiler.Tutorials.Components
{
    partial class demoPageView : Smobiler.Core.Controls.MobileForm
    {
        public demoPageView()
            : base()
        {
            //This call is required by the SmobilerForm.
            InitializeComponent();
        }

        private void title1_ImagePress(object sender, EventArgs e)
        {
            this.Close();
        }

        private void button1_Press(object sender, EventArgs e)
        {
            this.popList1.ShowDialog();
        }

        private void popList1_Selected(object sender, EventArgs e)
        {

            switch (popList1.Selections[0].Text)
            {
                case "DataBind":
                    DataBind();
                    labContent.Text = "数据绑定";
                    break;
                case "AutoPlay":
                    pageView1.AutoPlay = false;
                    labContent.Text = "获取和设置一个值，该值指示是否自动轮播页面";
                    break;
                case "Interval":
                    pageView1.Interval = 2;
                    labContent.Text = "获取或设置自动轮播间隔时间（以秒为单位）";
                    break;
                case "IsLoop":
                    pageView1.IsLoop = true;
                    labContent.Text = "获取和设置一个值，该值指示是否循环轮播页面。";
                    break;
                case "Locked":
                    pageView1.Locked = true;
                    labContent.Text = "获取和设置一个值，该值指示是否锁定页面并且切换页面。";
                    break;
                case "ShowIndicator":
                    pageView1.ShowIndicator = false;
                    labContent.Text = "获取和设置一个值，该值指示是否显示界面的圆点。";
                    break;
                case "Vertical":
                    pageView1.Vertical = true;
                    labContent.Text = "获取和设置一个值，该值指示页面是否垂直滚动。";
                    break;
                case "Add":
                    this.pageView1.NewPage();
                    labContent.Text = "添加项";
                    break;
                case "Remove":
                    if (this.pageView1.Pages.Count > 0)
                        this.pageView1.Pages.RemoveAt(0);
                    labContent.Text = "删除项";
                    break;
                case "Clear":
                    this.pageView1.Pages.Clear();
                    labContent.Text = "清空";
                    break;
                case "NewPage":
                    pageTable = new DataTable();
                    pageTable.Columns.Add("image");
                    pageTable.Rows.Add("1");
                    this.pageView1.UpdatePage(this.pageView1.Pages[0], pageTable);
                    labContent.Text = "根据数据源添加";
                    break;
            }
        }

        private void demoPageView_Load(object sender, EventArgs e)
        {
            PopListGroup g1 = new PopListGroup();
            g1.AddListItem("DataBind");
            g1.AddListItem("AutoPlay");
            g1.AddListItem("Interval");
            g1.AddListItem("IsLoop");
            g1.AddListItem("Locked");
            g1.AddListItem("ShowIndicator");
            g1.AddListItem("Vertical");
            g1.AddListItem("Add");
            g1.AddListItem("Remove");
            g1.AddListItem("Clear");
            g1.AddListItem("NewPage");
            popList1.Groups.Add(g1);
        }
        DataTable pageTable;
        private void DataBind()
        {
            pageTable = new DataTable();
            pageTable.Columns.Add("image");
            pageTable.Rows.Add("page1");
            pageTable.Rows.Add("page2");
            pageTable.Rows.Add("page3");
            if (pageTable.Rows.Count > 0)
            {
                pageView1.DataSource = pageTable;
                pageView1.DataBind();
            }
        }

        private void pageView1_PageIndexChanged(object sender, EventArgs e)
        {
            Toast(pageView1.PageIndex.ToString());
        }
    }
}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.Components
{
    partial class demoPageView : Smobiler.Core.Controls.MobileForm
    {
        #region "SmobilerForm generated code "

        //SmobilerForm overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }


        //NOTE: The following procedure is required by the SmobilerForm
        //It can be modified using the SmobilerForm.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel10 = new Smobiler.Core.Controls.Panel();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.labContent = new Smobiler.Core.Controls.Label();
            this.labTitle = new Smobiler.Core.Controls.Label();
            this.button1 = new Smobiler.Core.Controls.Button();
            this.pageView1 = new Smobiler.Core.Controls.PageView();
            this.popList1 = new Smobiler.Core.Controls.PopList();
            //
            // title1
            //
            this.title1.ImageType = Smobiler.Core.Controls.ImageEx.ImageStyle.FontIcon;
            this.title1.Name = "title1";
            this.title1.ResourceID = "angle-left";
            this.title1.Size = new System.Drawing.Size(300, 30);
            this.title1.Text = "PageView";
            this.title1.ImagePress += new System.EventHandler(this.title1_ImagePress);
            //
            // panel10
            //
            this.panel10.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1,
            this.pageView1});
            this.panel10.Dock = System.Windows.Forms.DockStyle.Fill;
            this.panel10.Location = new System.Drawing.Point(0, 30);
            this.panel10.Name = "panel10";
            this.panel10.Scrollable = true;
            this.panel10.Size = new System.Drawing.Size(300, 970);
            //
            // panel1
            //
            this.panel1.BackColor = System.Drawing.Color.White;
            this.panel1.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel1.BorderColor = System.Drawing.Color.Silver;
            this.panel1.BorderRadius = 5;
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.labContent,
            this.labTitle,
            this.button1});
            this.panel1.Location = new System.Drawing.Point(5, 9);
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(290, 123);
            //
            // labContent
            //
            this.labContent.BackColor = System.Drawing.Color.WhiteSmoke;
            this.labContent.FontSize = 15F;
            this.labContent.Location = new System.Drawing.Point(0, 26);
            this.labContent.Name = "labContent";
            this.labContent.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labContent.Size = new System.Drawing.Size(290, 54);
            this.labContent.Text = "可进行数据绑定，添加行，删除行，清空，根据数据源添加，index事件\r\n";
            //
            // labTitle
            //
            this.labTitle.BackColor = System.Drawing.Color.WhiteSmoke;
            this.labTitle.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.labTitle.BorderColor = System.Drawing.Color.DarkSeaGreen;
            this.labTitle.FontSize = 16F;
            this.labTitle.Name = "labTitle";
            this.labTitle.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labTitle.Size = new System.Drawing.Size(290, 26);
            this.labTitle.Text = "分页显示控件";
            //
            // button1
            //
            this.button1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(254)))), ((int)(((byte)(192)))), ((int)(((byte)(78)))));
            this.button1.Location = new System.Drawing.Point(39, 87);
            this.button1.Name = "button1";
            this.button1.Size = new System.Drawing.Size(212, 30);
            this.button1.Text = "控件介绍";
            this.button1.Press += new System.EventHandler(this.button1_Press);
            //
            // pageView1
            //
            this.pageView1.Location = new System.Drawing.Point(0, 138);
            this.pageView1.Name = "pageView1";
            this.pageView1.Size = new System.Drawing.Size(300, 220);
            this.pageView1.TemplateControlName = "demoPageViewTemplate";
            this.pageView1.PageIndexChanged += new System.EventHandler(this.pageView1_PageIndexChanged);
            //
            // popList1
            //
            this.popList1.Name = "popList1";
            this.popList1.Selected += new System.EventHandler(this.popList1_Selected);
            //
            // demoPageView
            //
            this.Components.AddRange(new Smobiler.Core.Controls.MobileComponent[] {
            this.popList1});
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel10});
            this.Load += new System.EventHandler(this.demoPageView_Load);
            this.Name = "demoPageView";

        }
        #endregion

        private Core.Controls.Title title1;
        private Core.Controls.Panel panel10;
        private Core.Controls.Panel panel1;
        private Core.Controls.Label labContent;
        private Core.Controls.Label labTitle;
        private Core.Controls.Button button1;
        private Core.Controls.PageView pageView1;
        private Core.Controls.PopList popList1;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace Smobiler.Tutorials.usercontrol
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class demoPageViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        public demoPageViewTemplate() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }
    }
}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.usercontrol
{
    partial class demoPageViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.image1 = new Smobiler.Core.Controls.Image();
            //
            // image1
            //
            this.image1.DataMember = "image";
            this.image1.DisplayMember = "image";
            this.image1.Flex = 1;
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(45, 45);
            //
            // demoPageViewTemplate
            //
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(300, 200);
            this.Name = "demoPageViewTemplate";

        }
        #endregion

        private Core.Controls.Image image1;
    }
}

using System;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace SmobilerTutorialsWeb.Components
{
    partial class demoPageView : Smobiler.Core.Controls.MobileForm
    {
        public demoPageView() : base()
        {
            //This call is required by the SmobilerForm.
            InitializeComponent();
        }

        private void title1_ImagePress(object sender, EventArgs e)
        {
            this.Close();
        }



        private void pageView1_PageIndexChanged(object sender, EventArgs e)
        {
            Toast(pageView1.PageIndex.ToString());
        }

        private void demoPageView_Load(object sender, EventArgs e)
        {
            spinner1.Items = new string[] { "DataBind", "AutoPlay", "Interval", "IsLoop","Locked","ShowIndicator","Vertical", "Add", "Remove","Clear", "NewPage" };

        }

        private void spinner1_ItemSelected(object sender, SpinnerItemSelectedEventArgs e)
        {
            switch (spinner1.Text)
            {
                case "DataBind":
                    DataBind();
                    labContent.Text = "数据绑定";
                    break;
                case "AutoPlay":
                    pageView1.AutoPlay = false;
                    labContent.Text = "获取和设置一个值，该值指示是否自动轮播页面";
                    break;
                case "Interval":
                    pageView1.Interval = 2;
                    labContent.Text = "获取或设置自动轮播间隔时间（以秒为单位）";
                    break;
                case "IsLoop":
                    pageView1.IsLoop = true;
                    labContent.Text = "获取和设置一个值，该值指示是否循环轮播页面。";
                    break;
                case "Locked":
                    pageView1.Locked = true;
                    labContent.Text = "获取和设置一个值，该值指示是否锁定页面并且切换页面。";
                    break;
                case "ShowIndicator":
                    pageView1.ShowIndicator = false;
                    labContent.Text = "获取和设置一个值，该值指示是否显示界面的圆点。";
                    break;
                case "Vertical":
                    pageView1.Vertical = true;
                    labContent.Text = "获取和设置一个值，该值指示页面是否垂直滚动。";
                    break;
                case "Add":
                    this.pageView1.NewPage();
                    labContent.Text = "添加项";
                    break;
                case "Remove":
                    if (this.pageView1.Pages.Count > 0)
                        this.pageView1.Pages.RemoveAt(0);
                    labContent.Text = "删除项";
                    break;
                case "Clear":
                    this.pageView1.Pages.Clear();
                    labContent.Text = "清空";
                    break;
                case "NewPage":
                    pageTable = new DataTable();
                    pageTable.Columns.Add("image");
                    pageTable.Rows.Add("1");
                    this.pageView1.NewPage(pageTable,"");
                    labContent.Text = "根据数据源添加";
                    break;
            }
        }
        DataTable pageTable;
        private void DataBind()
        {
            pageTable = new DataTable();
            pageTable.Columns.Add("image");
            pageTable.Rows.Add("page1");
            pageTable.Rows.Add("page2");
            pageTable.Rows.Add("page3");
            if (pageTable.Rows.Count > 0)
            {
                pageView1.DataSource = pageTable;
                pageView1.DataBind();
            }
        }
    }
}

using System;
using Smobiler.Core;
namespace SmobilerTutorialsWeb.Components
{
    partial class demoPageView : Smobiler.Core.Controls.MobileForm
    {
        #region "SmobilerForm generated code "

        //SmobilerForm overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }


        //NOTE: The following procedure is required by the SmobilerForm
        //It can be modified using the SmobilerForm.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel10 = new Smobiler.Core.Controls.Panel();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.labContent = new Smobiler.Core.Controls.Label();
            this.spinner1 = new Smobiler.Core.Controls.Spinner();
            this.pageView1 = new Smobiler.Core.Controls.PageView();
            this.labTitle = new Smobiler.Core.Controls.Label();
            //
            // title1
            //
            this.title1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(246)))), ((int)(((byte)(246)))), ((int)(((byte)(246)))));
            this.title1.ImageType = Smobiler.Core.Controls.ImageEx.ImageStyle.FontIcon;
            this.title1.Name = "title1";
            this.title1.ResourceID = "angle-left";
            this.title1.Size = new System.Drawing.Size(0, 30);
            this.title1.Text = "ListView";
            this.title1.ImagePress += new System.EventHandler(this.title1_ImagePress);
            //
            // panel10
            //
            this.panel10.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.panel1,
            this.labTitle});
            this.panel10.Dock = System.Windows.Forms.DockStyle.Fill;
            this.panel10.Flex = 1;
            this.panel10.Name = "panel10";
            this.panel10.Scrollable = true;
            this.panel10.Size = new System.Drawing.Size(0, 0);
            //
            // panel1
            //
            this.panel1.BackColor = System.Drawing.Color.White;
            this.panel1.Border = new Smobiler.Core.Controls.Border(1F);
            this.panel1.BorderColor = System.Drawing.Color.Silver;
            this.panel1.BorderRadius = 5;
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.labContent,
            this.spinner1,
            this.pageView1});
            this.panel1.Location = new System.Drawing.Point(300, 57);
            this.panel1.Name = "panel1";
            this.panel1.Size = new System.Drawing.Size(600, 442);
            //
            // labContent
            //
            this.labContent.BackColor = System.Drawing.Color.White;
            this.labContent.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.labContent.Location = new System.Drawing.Point(0, 103);
            this.labContent.Name = "labContent";
            this.labContent.Padding = new Smobiler.Core.Controls.Padding(5F);
            this.labContent.Size = new System.Drawing.Size(600, 42);
            this.labContent.Text = "点击上方选项，可进行数据绑定，添加行，删除行，清空，根据数据源添加，index事件\r\n";
            //
            // spinner1
            //
            this.spinner1.FontSize = 14F;
            this.spinner1.Location = new System.Drawing.Point(150, 30);
            this.spinner1.Name = "spinner1";
            this.spinner1.Size = new System.Drawing.Size(300, 40);
            this.spinner1.ItemSelected += new System.EventHandler<Smobiler.Core.Controls.SpinnerItemSelectedEventArgs>(this.spinner1_ItemSelected);
            //
            // pageView1
            //
            this.pageView1.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(20)))), ((int)(((byte)(102)))), ((int)(((byte)(102)))), ((int)(((byte)(102)))));
            this.pageView1.Location = new System.Drawing.Point(150, 178);
            this.pageView1.Name = "pageView1";
            this.pageView1.Size = new System.Drawing.Size(300, 200);
            this.pageView1.TemplateControlName = "demoPageViewTemplate";
            this.pageView1.PageIndexChanged += new System.EventHandler(this.pageView1_PageIndexChanged);
            //
            // labTitle
            //
            this.labTitle.BackColor = System.Drawing.Color.White;
            this.labTitle.Bold = true;
            this.labTitle.Border = new Smobiler.Core.Controls.Border(0F, 0F, 0F, 1F);
            this.labTitle.BorderColor = System.Drawing.Color.White;
            this.labTitle.FontSize = 16F;
            this.labTitle.Location = new System.Drawing.Point(300, 30);
            this.labTitle.Name = "labTitle";
            this.labTitle.Size = new System.Drawing.Size(600, 26);
            this.labTitle.Text = "分页显示控件";
            //
            // demoPageView
            //
            this.BackColor = System.Drawing.Color.White;
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel10});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(1200, 800);
            this.Load += new System.EventHandler(this.demoPageView_Load);
            this.Name = "demoPageView";

        }
        #endregion

        private Smobiler.Core.Controls.Title title1;
        private Smobiler.Core.Controls.Panel panel10;
        private Smobiler.Core.Controls.Panel panel1;
        private Smobiler.Core.Controls.Label labContent;
        private Smobiler.Core.Controls.Label labTitle;
        private Smobiler.Core.Controls.Spinner spinner1;
        private Smobiler.Core.Controls.PageView pageView1;
    }
}

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace SmobilerTutorialsWeb.UserControls
{
    ////ToolboxItem用于控制是否添加自定义控件到工具箱，true添加，false不添加
    //[System.ComponentModel.ToolboxItem(true)]
    partial class demoPageViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        public demoPageViewTemplate() : base()
        {
            //This call is required by the SmobilerUserControl.
            InitializeComponent();
        }
    }
}

using System;
using Smobiler.Core;
namespace SmobilerTutorialsWeb.UserControls
{
    partial class demoPageViewTemplate : Smobiler.Core.Controls.MobileUserControl
    {
        #region "SmobilerUserControl generated code "

        //SmobilerUserControl overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }

        //NOTE: The following procedure is required by the SmobilerUserControl
        //It can be modified using the SmobilerUserControl.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.image1 = new Smobiler.Core.Controls.Image();
            //
            // image1
            //
            this.image1.DataMember = "image";
            this.image1.DisplayMember = "image";
            this.image1.Flex = 1;
            this.image1.Name = "image1";
            this.image1.Size = new System.Drawing.Size(0, 0);
            //
            // demoPageViewTemplate
            //
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.image1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Size = new System.Drawing.Size(300, 200);
            this.Name = "demoPageViewTemplate";

        }
        #endregion

        private Smobiler.Core.Controls.Image image1;
    }
}
