控件介绍-开发文档-Smobiler上海石磨

预览
代码

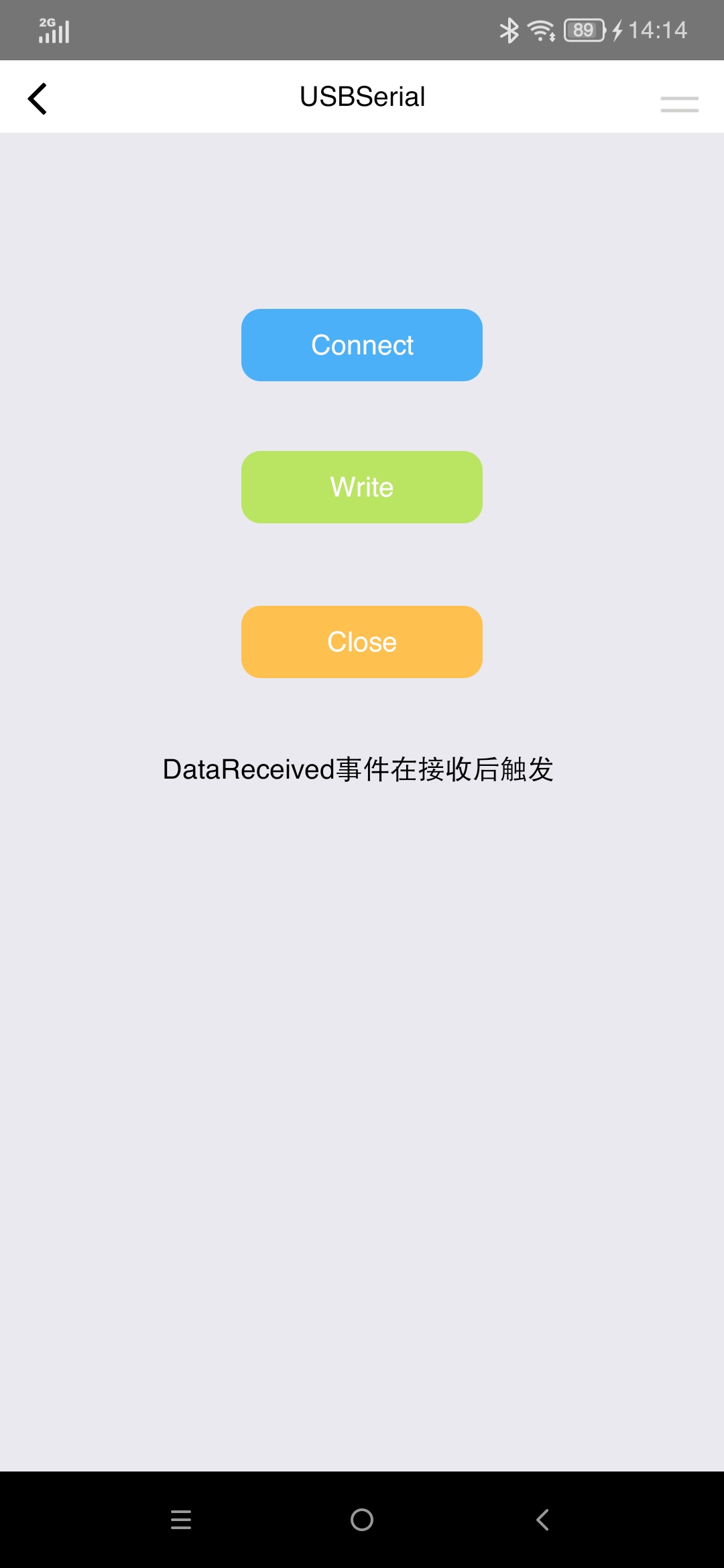

手机端效果

demoUSBSerial.cs

demoUSBSerial.Designer.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Smobiler.Core;
using Smobiler.Core.Controls;

namespace Smobiler.Tutorials.Plugins
{
    partial class demoUSBSerial : Smobiler.Core.Controls.MobileForm
    {
        public demoUSBSerial() : base()
        {
            //This call is required by the SmobilerForm.
            InitializeComponent();
        }

        private void title1_ImagePress(object sender, EventArgs e)
        {
            this.Close();
        }

        private void btnConnect_Press(object sender, EventArgs e)
        {
            usbSerial1.Connect();
        }

        private void btnWrite_Press(object sender, EventArgs e)
        {
            string str = "690000001";
            string print1 = "SIZE 50 mm,80 mm\r\n" + "GAP 2 mm,0 mm\r\n" + "TEXT 30,0,\"TST24.BF2  \",0,1,1,\"" + "TDW108.热转印色带" + "\n" + "TEXT 30,60,\"ROMAN.TTF \",0,1,1,\"" + "110mm×300m" + "\r\n" + "TEXT 30,120,\"TST24.BF2  \",0,1,1,\"" + "外碳" + "\r\n" + "TEXT 30,180,\"ROMAN.TTF \",0,1,1,\"" + "0101MFG18110056" + "\r\n" + "TEXT 30,240,\"ROMAN.TTF \",0,1,1,\"" + "110.DBON1.0101.4.Z1.24" + "\r\n" + "REFERENCE 0,0\r\n" + "SPEED 4.0\r\n" + "DENSITY 8\r\n" +
             "SET PEEL OFF\r\n" + "SET CUTTER OFF\r\n" + "SET TEAR ON\r\n" + "DIRECTION 0\r\n" + "SHIFT 0\r\n" + "OFFSET 0 mm\r\n" + "CLS\r\n" + "QRCODE 350,0,H,4,A,0,M6,S7,\"" + str + "\"\r\n" + "TEXT 350,240,\"TSS24.BF2 \",0,1,1,\"" + "数量:100 卷     R11" + "\n" + "PRINT 1,1\r\n";
            //写入信息
            usbSerial1.Write(System.Text.Encoding.GetEncoding("gbk").GetBytes(print1), (abj, args) =>
            {
                if (args.isError == true)
                    Toast(args.error);
                else
                    Toast("success");
            });

        }

        private void btnClose_Press(object sender, EventArgs e)
        {
            usbSerial1.Close();

        }

        private void usbSerial1_DataReceived(object sender, Smobiler.Plugins.USBSerialDataReceivedEventArgs e)
        {
           //e.Data 接收到的数据
         }
    }
}

using System;
using Smobiler.Core;
namespace Smobiler.Tutorials.Plugins
{
    partial class demoUSBSerial : Smobiler.Core.Controls.MobileForm
    {
        #region "SmobilerForm generated code "

        //SmobilerForm overrides dispose to clean up the component list.
        protected override void Dispose(bool disposing)
        {
            base.Dispose(disposing);
        }


        //NOTE: The following procedure is required by the SmobilerForm
        //It can be modified using the SmobilerForm.
        //Do not modify it using the code editor.
        [System.Diagnostics.DebuggerStepThrough()]
        private void InitializeComponent()
        {
            this.title1 = new Smobiler.Core.Controls.Title();
            this.panel1 = new Smobiler.Core.Controls.Panel();
            this.btnConnect = new Smobiler.Core.Controls.Button();
            this.btnWrite = new Smobiler.Core.Controls.Button();
            this.btnClose = new Smobiler.Core.Controls.Button();
            this.usbSerial1 = new Smobiler.Plugins.USBSerial();
            this.label1 = new Smobiler.Core.Controls.Label();
            //
            // title1
            //
            this.title1.ImageType = Smobiler.Core.Controls.ImageEx.ImageStyle.FontIcon;
            this.title1.Name = "title1";
            this.title1.ResourceID = "angle-left";
            this.title1.Size = new System.Drawing.Size(300, 30);
            this.title1.Text = "USBSerial";
            this.title1.ImagePress += new System.EventHandler(this.title1_ImagePress);
            //
            // panel1
            //
            this.panel1.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.btnConnect,
            this.btnWrite,
            this.btnClose,
            this.label1});
            this.panel1.Flex = 1;
            this.panel1.Name = "panel1";
            this.panel1.Scrollable = true;
            this.panel1.Size = new System.Drawing.Size(0, 100);
            //
            // btnConnect
            //
            this.btnConnect.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(76)))), ((int)(((byte)(176)))), ((int)(((byte)(249)))));
            this.btnConnect.Location = new System.Drawing.Point(100, 73);
            this.btnConnect.Name = "btnConnect";
            this.btnConnect.Size = new System.Drawing.Size(100, 30);
            this.btnConnect.Text = "Connect";
            this.btnConnect.Press += new System.EventHandler(this.btnConnect_Press);
            //
            // btnWrite
            //
            this.btnWrite.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(185)))), ((int)(((byte)(229)))), ((int)(((byte)(99)))));
            this.btnWrite.Location = new System.Drawing.Point(100, 132);
            this.btnWrite.Name = "btnWrite";
            this.btnWrite.Size = new System.Drawing.Size(100, 30);
            this.btnWrite.Text = "Write";
            this.btnWrite.Press += new System.EventHandler(this.btnWrite_Press);
            //
            // btnClose
            //
            this.btnClose.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(254)))), ((int)(((byte)(192)))), ((int)(((byte)(78)))));
            this.btnClose.Location = new System.Drawing.Point(100, 196);
            this.btnClose.Name = "btnClose";
            this.btnClose.Size = new System.Drawing.Size(100, 30);
            this.btnClose.Text = "Close";
            this.btnClose.Press += new System.EventHandler(this.btnClose_Press);
            //
            // usbSerial1
            //
            this.usbSerial1.Name = "usbSerial1";
            this.usbSerial1.DataReceived += new Smobiler.Plugins.USBSerialDataReceivedEventHandler(this.usbSerial1_DataReceived);
            //
            // label1
            //
            this.label1.HorizontalAlignment = Smobiler.Core.Controls.HorizontalAlignment.Center;
            this.label1.Location = new System.Drawing.Point(0, 254);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(300, 35);
            this.label1.Text = "DataReceived事件在接收后触发\r\n";
            //
            // demoUSBSerial
            //
            this.Components.AddRange(new Smobiler.Core.Controls.MobileComponent[] {
            this.usbSerial1});
            this.Controls.AddRange(new Smobiler.Core.Controls.MobileControl[] {
            this.title1,
            this.panel1});
            this.Layout = Smobiler.Core.Controls.LayoutPosition.Relative;
            this.Name = "demoUSBSerial";

        }
        #endregion

        private Core.Controls.Title title1;
        private Core.Controls.Panel panel1;
        private Core.Controls.Button btnConnect;
        private Core.Controls.Button btnWrite;
        private Core.Controls.Button btnClose;
        private Smobiler.Plugins.USBSerial usbSerial1;
        private Core.Controls.Label label1;
    }
}
